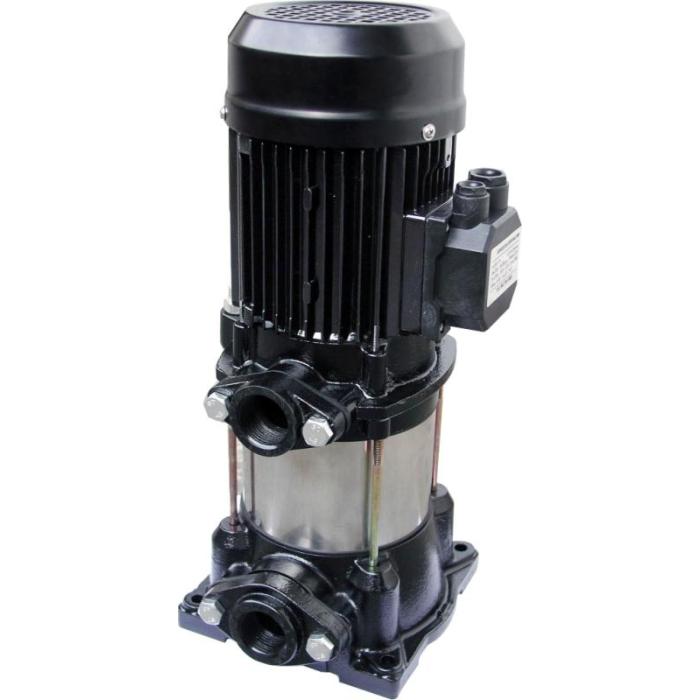

plastic impeller Vertical Multistage Centrifugal Pump

plastic impeller Vertical Multistage Centrifugal Pump

plastic impeller Vertical Multistage Centrifugal Pump
plastic impeller Vertical Multistage Centrifugal Pumpplastic impeller Vertical Multistage Centrifugal Pumpplastic impeller Vertical Multistage Centrifugal Pumpplastic impeller Vertical Multistage Centrifugal Pumpplastic impeller Vertical Multistage Centrifugal Pump
CategoriesPlastic Impeller Vertical Multistage Pumps
BrandRondos Water Pump Manufacturer
ModelCVM
The liquid temperature0ºCto +50ºC
Flow range0.6m3/h~20m3/h
Head range15m~175m
The environment temperature≤50ºC
FOB portSHANGHAI
Update Time2022/8/11
Detail Information
Product features:plastic impeller Vertical Multistage Centrifugal Pump
1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: 0ºC to +50ºC .
3. Flow range 0.6m3/h~20m3/h, head range 15m~175m.
4. Model range CVM1,2,4, 6,8,12
5. Material plastic impeller and diffuser
6. The environment temperature: +50ºC.
7. The minimum entrance pressure curve: NPSH +0.5m.
8. Head of safety margin of 0.5m.
Data sheet:

Model

CVM1

CVM2

CVM4

CVM6

CVM8

CVM12

rated flow. m3/h

1

2

4

6

8

12

Max.head. m

105

150

155

175

60

142

Applications:
