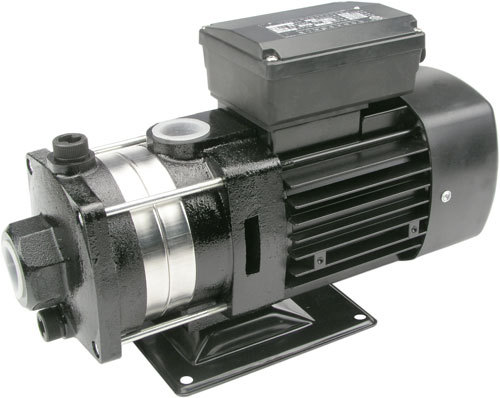

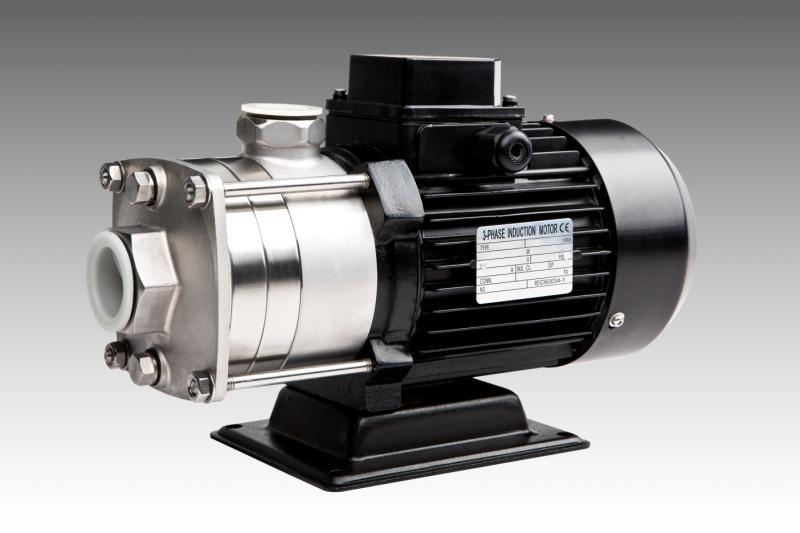

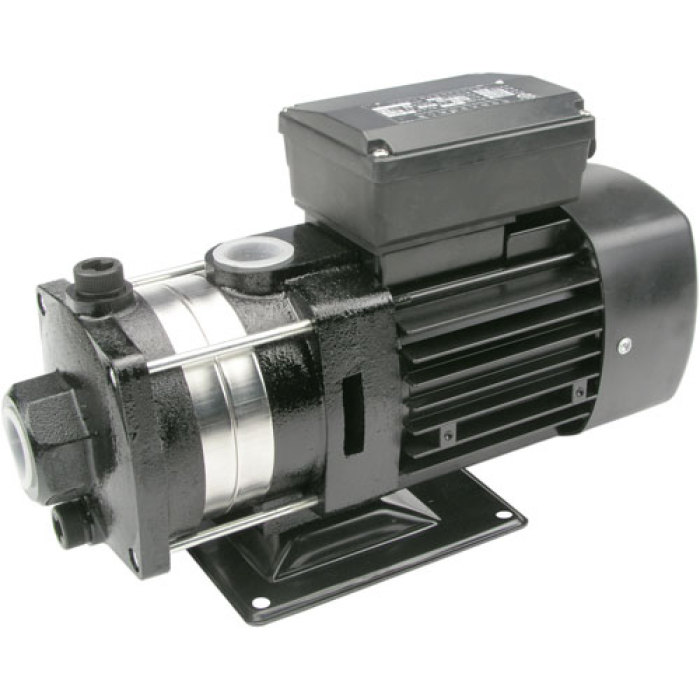

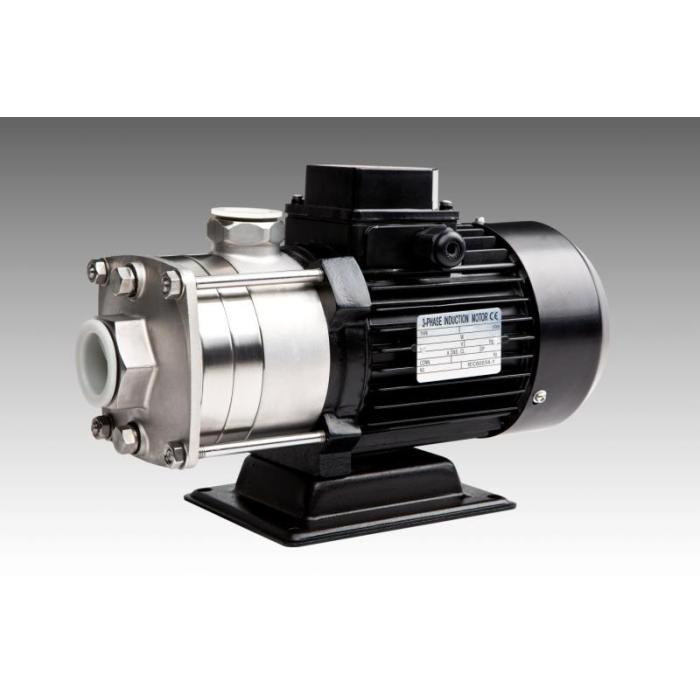

Light Horizontal Multistage Centrifugal Water Pump
| Categories | SHF Stainless Steel Horizontal Multistage Pumps |
|---|---|
| Trademark/Brand | Rondos Water Pump Manufacturer |
| Model | SHF |
| The liquid temperature | -15ºC to +70ºC |
| hot water type | +70ºC to +115ºC |
| Flow range | 0.4m³/h~240m³/h |
| Head range | Max.305m |
| The environment temperature | +40ºC |
| FOB port | SHANGHAI |
| Download |  |
| Update Time | Oct 24,2025 |
Detail Information
Product features:
1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: -15ºC to +70ºC, hot water type +70ºC to +115ºC.
3. The environment temperature: +40ºC.
4. The minimum entrance pressure curve: NPSH +0.5m.
5. Head of safety margin of 0.5m.
Data sheet:
Model |
HS2 |
HS4 |
HS8 |
HS12 |
HS16 |
HS20 |
rated flow. m³/h |
2 |
4 |
8 |
12 |
16 |
20 |
Max.head. m |
53 |
56 |
50.5 |
60 |
53.5 |
53 |
Applications:
