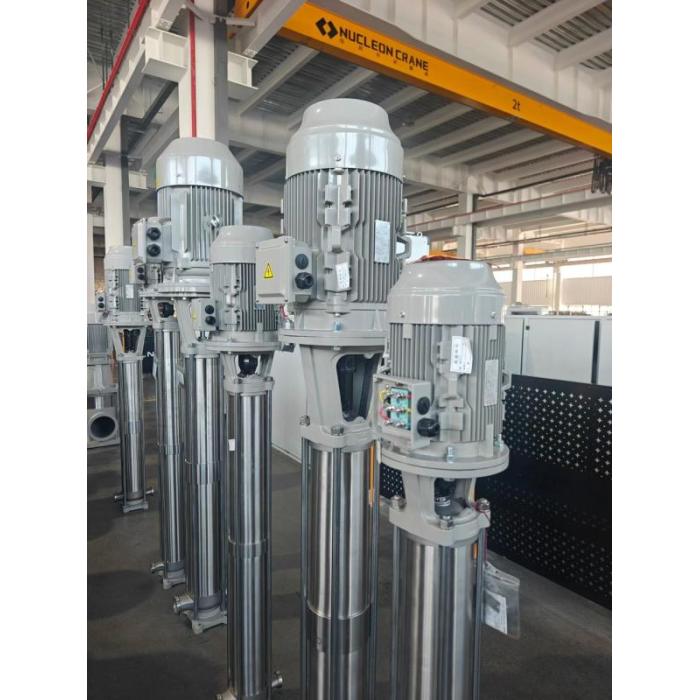

ASB/ASBM Stainless Steel High Pressure Vertical Multistage Pump

Categories	Stainless Steel High Pressure Vertical/Horizontal Multistage pump
Trademark/Brand	Rondos Water Pump Manufacturer
Model	ASB/ASBM
Material	SS304, SS316L, Duplex 2205
The environment temperature:	≤40ºC
The liquid temperature	-15ºC to +70ºC
Hot water type	-15ºC to +120ºC
The minimum entrance pressure curve	NPSH +0.5m
Motor	Permanent magnet variable frequency, speed 3500rpm
Flow	0.5~498m3/h
Head	100~694m
Download
Update Time	Nov 7,2025

Detail Information

Product features:

1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .

^{2. The liquid temperature: -15ºC to +70ºC, hot water type -15ºC to +120ºC}

^{3. Flow range 0.5m³/h~498m³/h, head range 100m~694m.}

^{4. Model range ASB1,2,3,4,5,8,10,12,15,16,20,32,45,64,90,100,130,160,190,220,260,300,350,400,450}

^{5. Material SS304, SS316L. Duplex 2205}

^{6. The environment temperature: ≤40ºC.}

^{7. The minimum entrance pressure curve: NPSH +0.5m.}

^{8. Head of safety margin of 0.5m.}

Data sheet:
