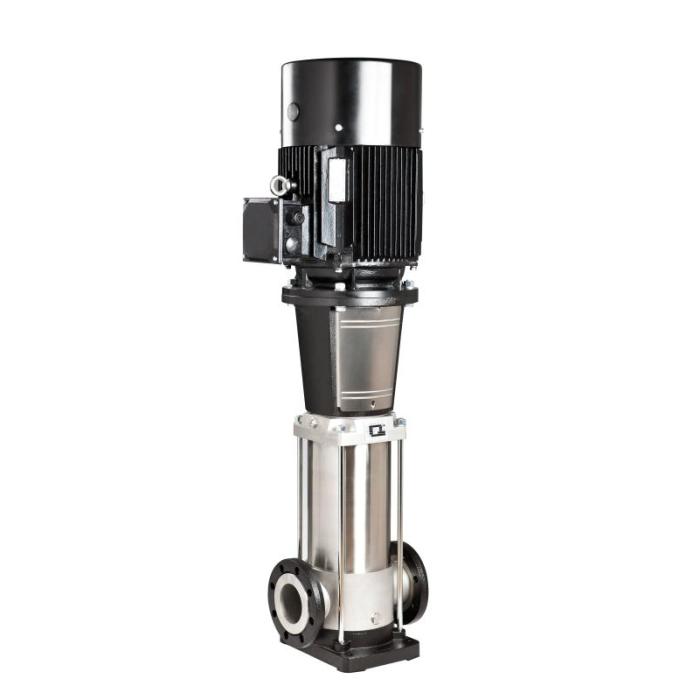

Stainless Steel Vertical Multistage Centrifugal Pump

Stainless Steel Vertical Multistage Centrifugal Pump

Stainless Steel Vertical Multistage Centrifugal Pump
Stainless Steel Vertical Multistage Centrifugal PumpStainless Steel Vertical Multistage Centrifugal PumpStainless Steel Vertical Multistage Centrifugal PumpStainless Steel Vertical Multistage Centrifugal PumpStainless Steel Vertical Multistage Centrifugal Pump
CategoriesStainless Steel Vertical Multistage Pumps
BrandRondos Water Pump Manufacturer
ModelSDL,SDLT
The liquid temperature-15ºCto +70ºC
hot water type+70ºC to +115ºC
Flow range0.4m3/h~240m3/h
Head rangeMax.305m
The environment temperature+40ºC
FOB portSHANGHAI
Update Time2022/8/11
Detail Information
Product features:Stainless Steel Vertical Multistage Centrifugal Pump
1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: -15ºCto +70ºC hot water type +70ºC to +115ºC.
3. Flow range 0.4m3/h~240m3/h, head range 103m~305m.
4. Model range SDL1,2,3,4,5,8,10,12,15,16,20,32,45,64,90,120,150,200
5. Material CI, SS304, SS316L, Duplex all available.
6. The environment temperature: +40ºC.
7. The minimum entrance pressure curve: NPSH +0.5m.
8. Head of safety margin of 0.5m.
Data sheet:

Model

SDL1

SDL2

SDL3

SDL4

SDL5

SDL8

rated flow. m3/h

1

2

3

4

5

8

Max.head. m

214

214

218

211

232

208

Model

SDL10

SDL12

SDL15

SDL16

SDL20

SDL32

rated flow. m3/h

10

12

15

16

20

32

Max.head. m

222

217

227

222

234

292

Model

SDL45

SDL64

SDL90

SDL120

SDL150

SDL200

rated flow. m3/h

45

64

90

120

150

200

Max.head. m

305

215

168

162.5

157

157.5

Applications:
