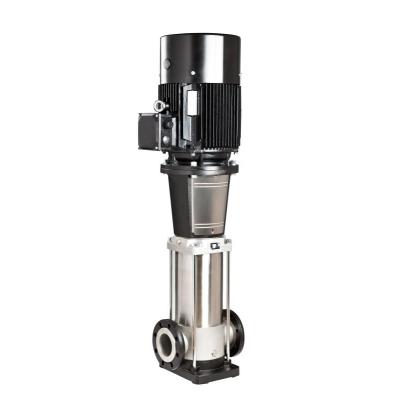

New Type Stainless Steel Vertical Multistage Centrifugal Pump

Categories	Stainless Steel Vertical Multistage Pumps
Brand	Rondos Water Pump Manufacturer
Model	AS, AC
The liquid temperature	-15ºCto +70ºC
hot water type	+70ºC to +115ºC
Flow range	0.4m³/h~330m³/h
Head range	Max.366m
The environment temperature	+40ºC
FOB port	SHANGHAI
Update Time	Sep 11,2025

Detail Information

Product features:

^{1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .}

^{2. The liquid temperature: -15ºC to +70ºC hot water type +70ºC to +115ºC.}

^{3. Flow range 0.4m³/h~330m³/h, head range 3.5m~366m.}

^{4. Model range AS1,2,3,4,5,8,10,12,15,16,20,32,45,64,90,120,150,200}

^{5. Material CI, SS304, SS316L, Duplex all available.}

^{6. The environment temperature: +40ºC.}

^{7. The minimum entrance pressure curve: NPSH +0.5m.}

^{8. Head of safety margin of 0.5m.}

^{9. IP55, F class.}

^{10.Single phase up to 2.2kw.}

^{11.Standard color is black.Electrophoretic paint.}

^{12.Cartridge mechanical seal, standard type is graphite/carbide tungsten, viton.}

Data sheet: 50Hz

Applications:
