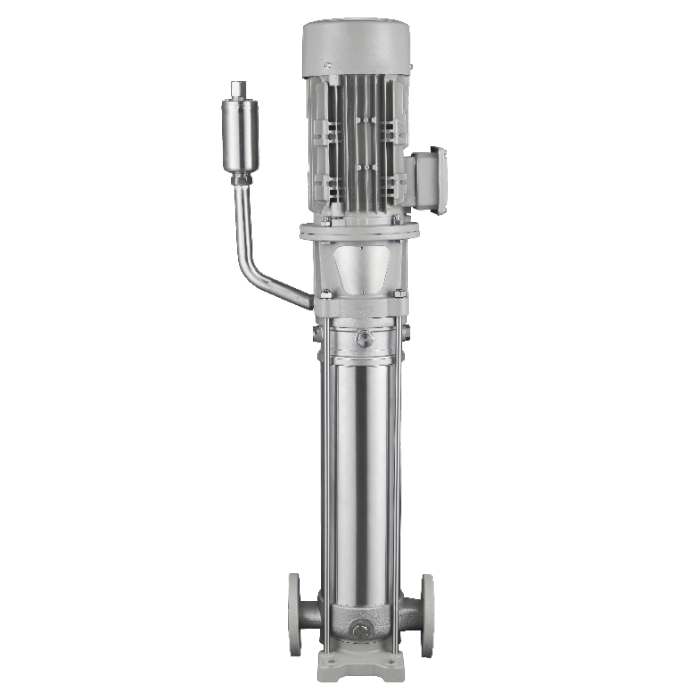

ASF High Temperature Stainless Steel Vertical Multistage Centrifugal Pump

Categories	Stainless Steel Vertical Multistage Pumps
Trademark/Brand	Rondos Water Pump Manufacturer
Model	ASF
The liquid temperature	-15ºC to +180ºC
Flow range	0.4m³/h~100m³/h
Head range	Max.380m
The environment temperature	+40ºC
Material	CI, SS304, SS316L
FOB port	SHANGHAI
Download
Update Time	Nov 7,2025

Detail Information

Product features:

^{1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .}

^{2. The liquid temperature: -15ºC to +180ºC.}

^{3. Flow range 0.4m³/h~498m³/h, head range 7m~380m.}

^{4. Model range ASF1,2,3,4,5,8,10,12,15,16,20}

^{5. Material CI, SS304, SS316L all available.}

^{6. The environment temperature: Max. 40ºC.}

^{7. The minimum entrance pressure curve: NPSH +0.5m.}

^{8. Head of safety margin of 0.5m.}

^{9. IP55, F class.}

^{10.Single phase up to 2.2kw.}

^{11.Standard color is black.Electrophoretic paint.}

^{12.Cartridge mechanical seal, standard type is graphite/carbide tungsten, viton.}

Data sheet: 50Hz
